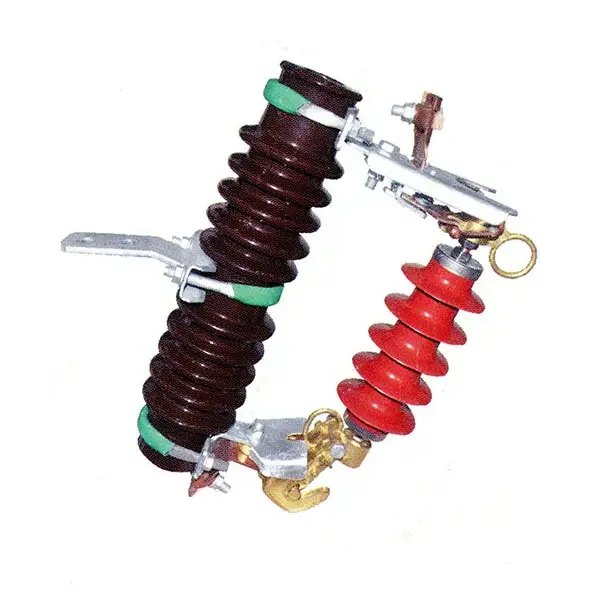

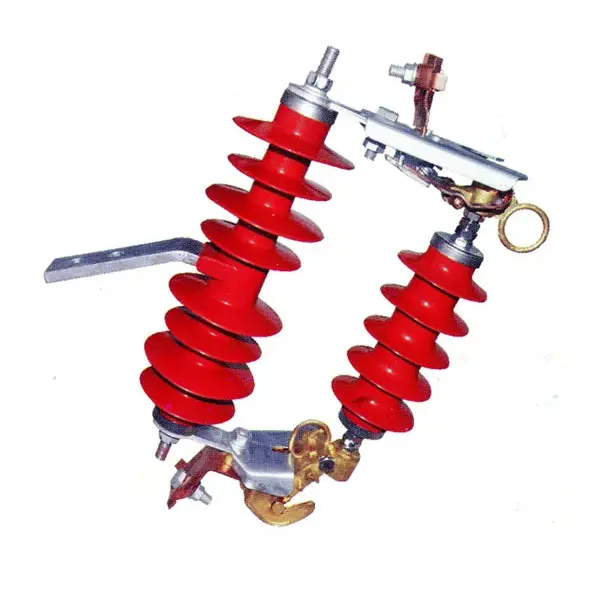

HY5WS-17/50DL-TB Dropout Surge Arrester – Plug-in & Removable Type
The HY5WS-17/50DL-TB Dropout Surge Arrester is a plug-in and removable zinc oxide surge arrester designed for 10kV distribution systems. Its dropout structure makes inspection and replacement more convenient, while the thermal disconnector helps isolate a failed arrester and provides a visible indication of its operating status.
The arrester is well suited for overhead distribution lines and critical power supply locations where reliable overvoltage protection and convenient field maintenance are important. Its removable design can help reduce maintenance time while supporting continued operation of the distribution network.
Get a QuoteOverview
The HY5WS-17/50DL-TB Plug-in and Removable Dropout Surge Arrester is designed for 10kV distribution systems and combines a zinc oxide surge arrester with a dropout mechanism. This configuration allows operators to inspect, service, or replace the arrester using an insulated operating rod, without requiring a complete power shutdown. It is particularly suitable for locations where continuous power supply is important, such as telecommunication facilities, airports, railway stations, hospitals, and commercial areas.
The arrester is also equipped with a thermal explosion-type disconnector to improve fault isolation. When the arrester experiences an abnormal condition and develops a power-frequency fault current, the disconnector operates and causes the arrester unit to drop out of the circuit. This provides a visible indication of the faulty arrester and helps prevent a damaged unit from remaining connected to the power system.
With its plug-in, removable, and dropout design, the HY5WS-17/50DL-TB simplifies field maintenance while maintaining the essential surge protection characteristics of a conventional distribution-type zinc oxide arrester. It provides a practical solution for 10kV overhead distribution networks that require both reliable overvoltage protection and convenient maintenance.
Technical Data
| Model | System Voltage (kV) | Rated Voltage (kV) | Continuous Operating Voltage (kV) | U1mA DC (kV) | Residual Voltage at Nominal Discharge Current (kV) | 2ms Square Wave Current Capacity (A) |
| HY5WS-10/30DL | 6 | 10 | 8 | 15 | 30 | 100 |
| HY5WS-10/30DL-TB | ||||||
| HY5WS-17/50DL | 10 | 17 | 13.6 | 25 | 50 | |
| HY5WS-17/50DL-TB | ||||||
| HY5WZ-17/45DL | 24 | 45 | 200 | |||
| HY5WZ-17/45DL-TB |
