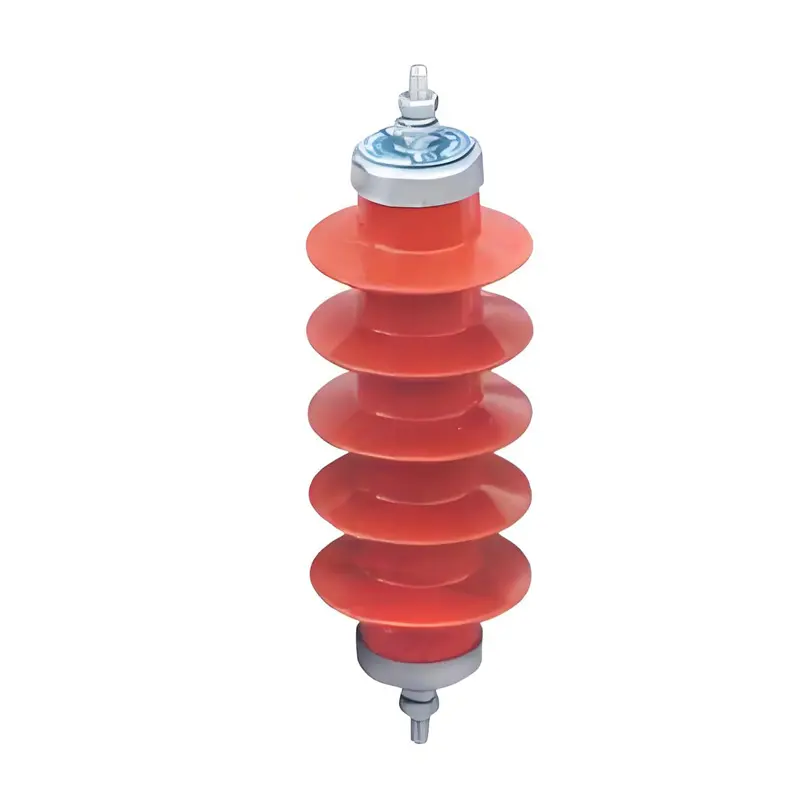

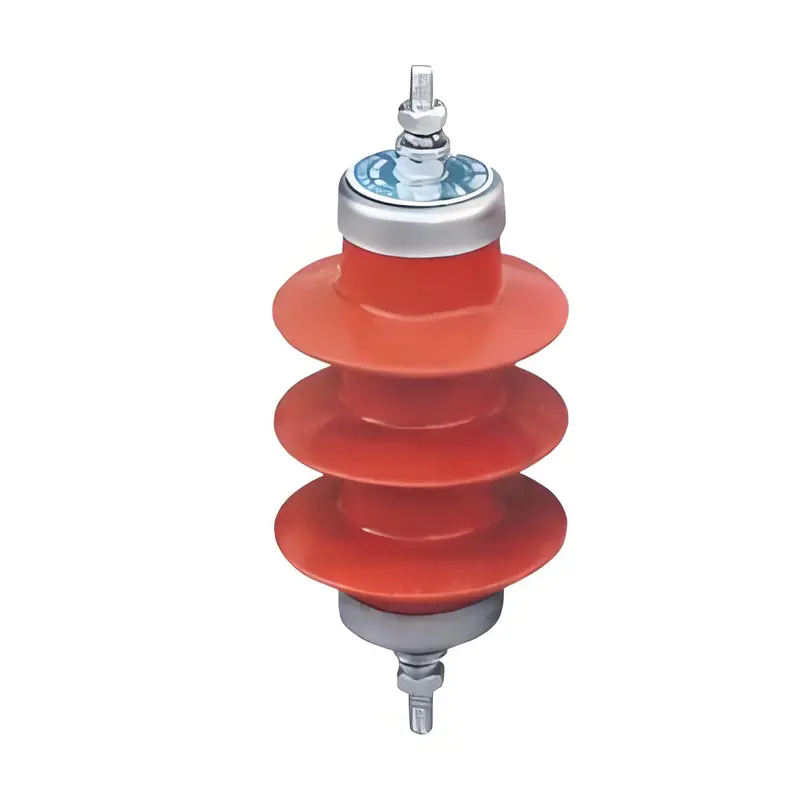

HY5WZ Surge Arrester
HY1.5W Surge Arrester are high-tech products in the 1990s. They use oxygen zinc resistors with excellent nonlinear volt-ampere characteristics, so the protection characteristics of the arrester under slope, lightning waves, and operating waves are greatly improved compared to traditional silicon carbide arresters.
Get a Quote
Overview
HY5WZ Surge Arrester are high-tech products in the 1990s. They use oxygen zinc resistors with excellent nonlinear volt-ampere characteristics, so the protection characteristics of the arrester under slope, lightning waves, and operating waves are greatly improved compared to traditional silicon carbide arresters.
Operating Conditions
1. Altitude: ≤ 2000 meters;
2. The environment temperature: upper limit +40℃, lower limit -40℃;
3. Maximum wind speed does not exceed 35m/s;
4. Earthquake intensity: ≤7degree;
5. AC systen frequency is 50Hz or 60Hz;
Technical Data
| Model | System Rated voltage | Arrester Rated voltage | Continuous Rated voltage | DC U1mA voltage | 1/10μs Steep wave Impulse residual voltage | 8/20μs Lighting current impulse | 30/60μs Residual voltage under impulse current operation | 2ms square wave Impulse current withstand | 4/10μs high current impules |
| KV(r.m.s) | ≮ KV | ≯ KV | A | kA | |||||
| HY5WZ-5/13.5 | 3 | 5 | 4.0 | 7.5 | 15.5 | 13.5 | 11.5 | 150 | 65 |
| HY5WZ-10/27 | 6 | 10 | 8.0 | 15 | 31 | 27 | 23 | 150 | 65 |
| HY5WZ-17/45 | 10 | 17 | 13.6 | 24 | 51.5 | 45 | 38.3 | 150 | 65 |
| HY5WZ-51/134 | 35 | 51 | 40.8 | 73 | 154 | 134 | 114 | 400 | 100 |
| HY5WZ-54/134 | 35 | 54 | 43.2 | 77 | 154 | 134 | 114 | 400 | 100 |
| HY5WZ-84/221 | 66 | 84 | 67.2 | 121 | 254 | 221 | 188 | 600 | 100 |
| HY5WZ-90/235 | 66 | 90 | 72.5 | 130 | 270 | 235 | 201 | 600 | 100 |
| HY5WZ-100/260 | 110 | 100 | 78.0 | 145 | 299 | 260 | 221 | 600 | 100 |
| HY5WZ-108/281 | 110 | 108 | 84.0 | 157 | 323 | 281 | 239 | 600 | 100 |

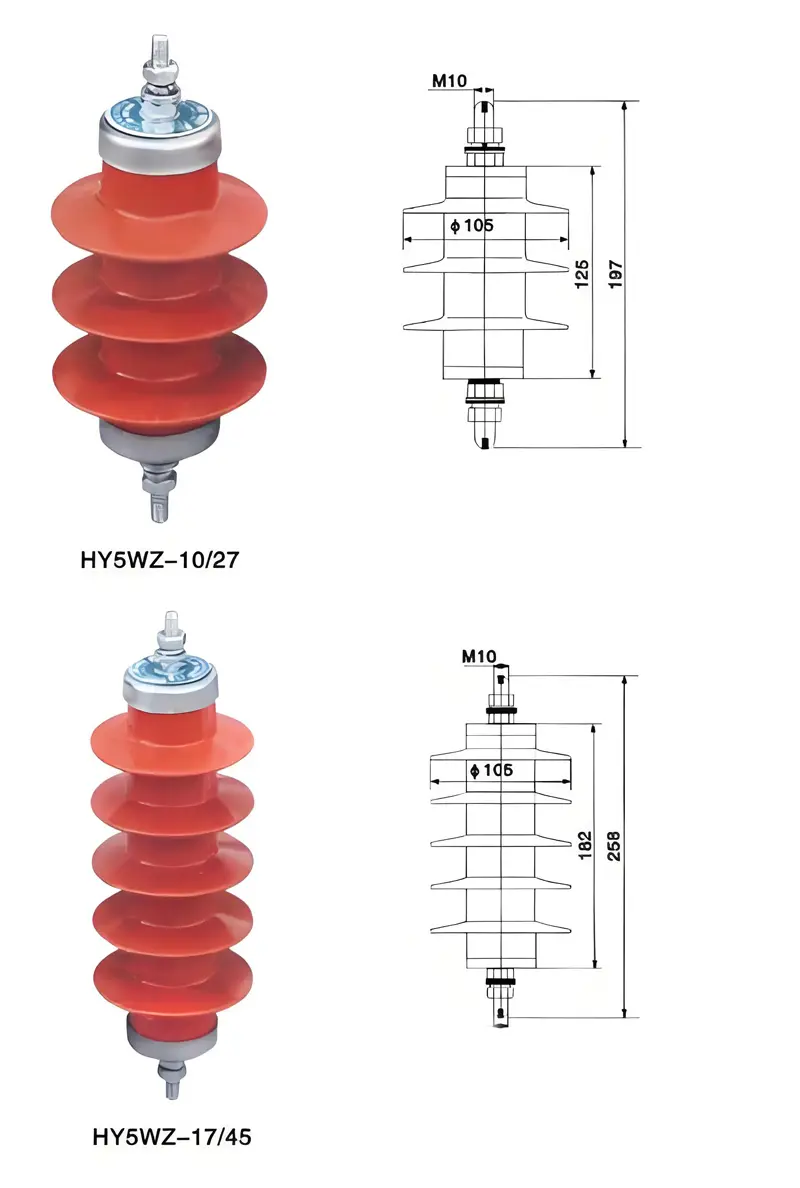

HY5WZ Series Arrester
