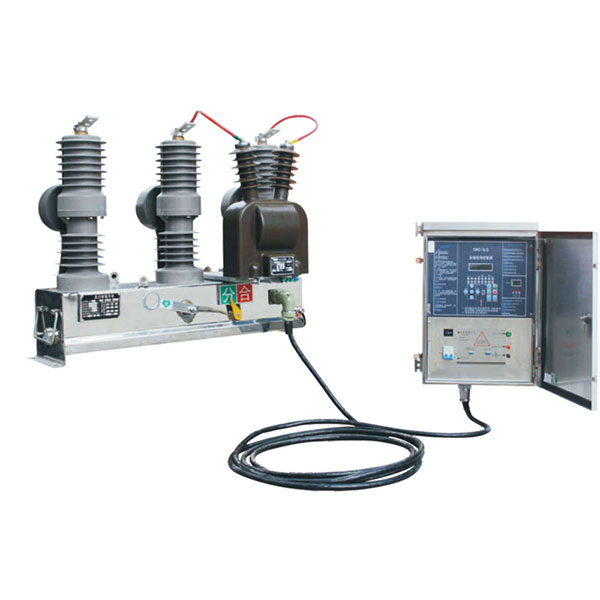

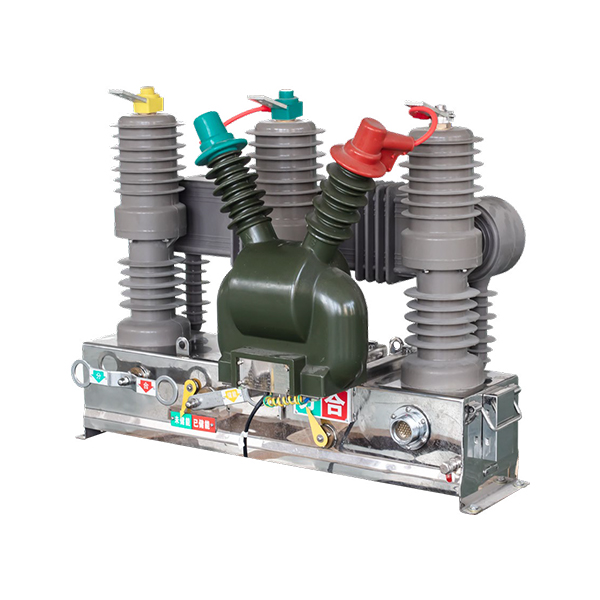

ZW32-12MF/630A 12KV Outdoor Permanent Magnet smart VCB

Overview

Features

Robust Sealed Outdoor Structure

The breaker adopts a sealed outdoor design to ensure stable operation in challenging environments. Its protective structure helps prevent the impact of moisture, dust, temperature changes, and other outdoor factors, providing reliable long-term service in various climates.

Key advantages include:

• Excellent environmental resistance
• Suitable for humid, dusty, and tropical regions
• Reliable outdoor operation with reduced maintenance requirements

Integrated Intelligent Control Functions

With built-in current transformers (CTs) and optional zero-sequence protection, the ZW32-12MF provides accurate monitoring and advanced fault protection. It can be integrated into distribution automation systems for improved grid management and faster fault handling.

Supported functions include:

• Current measurement and monitoring
• Zero-sequence fault protection
• Remote control and operation
• Fault detection and indication

Smart Grid Communication Compatibility

The ZW32-12MF supports connection with FTU, DTU, and SCADA systems, enabling remote data acquisition, equipment monitoring, and automated distribution management.

Communication capabilities include:

• FTU/DTU integration
• SCADA system compatibility
• Remote status monitoring
• Data transmission for automation platforms

High Performance and Flexible Configuration

Designed for 12kV distribution applications, the ZW32-12MF combines high breaking capability with long mechanical endurance. Its adjustable automatic reclosing function improves power supply continuity and reduces the impact of temporary faults.

Main specifications and features:

• Rated voltage: 12kV
• Rated current: 630A
• Short-circuit breaking capacity up to 25kA
• Mechanical life over 10,000 operations
• Up to 3 configurable auto-reclosing cycles

Technical Data

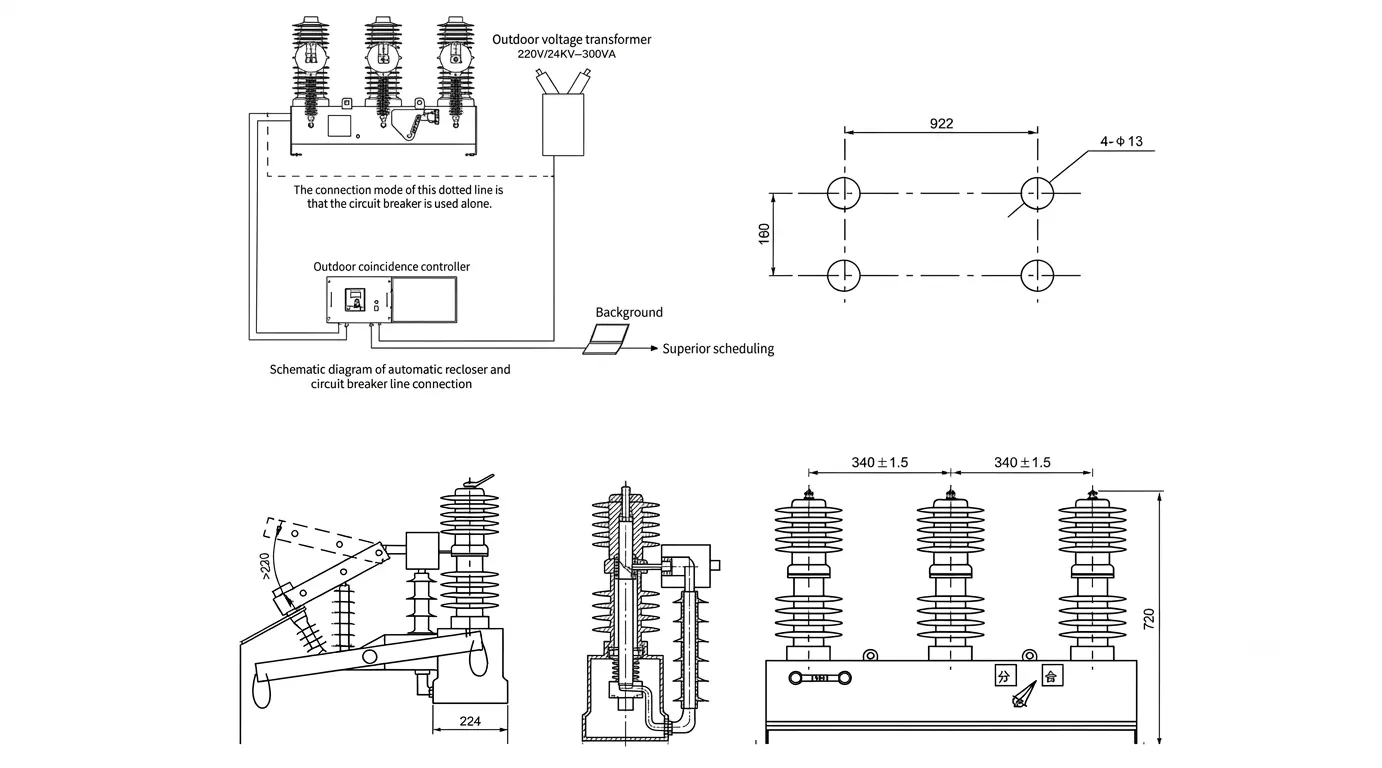

Overall and mounting dimensions(mm)

Typical Application Scenarios

The ZW7-40.5/1250A Outdoor Pole-Mounted Smart Vacuum Circuit Breaker is designed for wind power grid connection and outdoor medium-voltage distribution applications. With intelligent protection, remote communication, and strong environmental adaptability, it provides reliable switching and fault management solutions for wind farms in different regions and climates.

Onshore Wind Farms in Remote Areas

Wind farms located in remote areas such as deserts, plateaus, and mountainous regions often face challenges including extreme weather, difficult maintenance access, and unstable grid conditions.

The ZW7-40.5/1250A provides reliable operation in these environments through its outdoor pole-mounted structure, fast reclosing capability, and remote monitoring functions. Integration with SCADA systems allows operators to monitor equipment status and manage faults without frequent on-site inspections.

Main benefits include:

• Reliable operation under harsh outdoor conditions
• Remote monitoring and control capability
• Fast recovery from transient faults
• Reduced maintenance workload

Distributed Wind Power Projects in Humid and High-Pollution Areas

For wind power installations in coastal areas, tropical regions, and environments with high humidity or salt exposure, outdoor electrical equipment requires strong sealing and corrosion resistance.

The ZW7-40.5/1250A features a robust enclosure design and high environmental adaptability, helping maintain stable insulation performance and reliable switching operation in challenging climates.

Suitable environments include:

• Coastal wind farms
• High-humidity regions
• Areas with heavy pollution levels
• Storm-prone renewable energy sites

Wind Power Grid Connection and Transmission Applications

Wind power interconnection points require reliable protection and switching equipment to ensure stable energy transmission. The ZW7-40.5/1250A combines high breaking capability, intelligent control, and flexible installation to support reliable operation at wind farm feeder points and grid connection systems.

Its advantages include:

• High reliability for grid connection applications
• Intelligent protection and fault isolation
• Long mechanical service life
• Flexible outdoor installation

Installation, Maintenance, and Safety Advantages

Fast Installation for Remote Wind Power Projects

The ZW7-40.5/1250A adopts a compact pole-mounted structure that simplifies transportation and installation. Compared with conventional substation-based equipment, it reduces construction requirements and allows faster deployment in remote wind farm locations.

Key advantages include:

• Integrated outdoor pole-mounted design
• Reduced installation complexity
• Lower construction requirements
• Suitable for remote project deployment

Intelligent Operation and Maintenance

With built-in intelligent control and communication capabilities, the breaker supports remote status monitoring, fault alarms, and operational data collection. Through integration with wind farm SCADA systems, maintenance teams can analyze equipment conditions and perform initial fault diagnosis remotely.

This helps:

• Reduce unnecessary site visits
• Improve maintenance efficiency
• Lower operational risks in remote areas
• Increase wind farm availability

Reliable Protection for Wind Turbines and Power Networks

The ZW7-40.5/1250A integrates multiple protection functions to quickly respond to abnormal operating conditions. Its vacuum interruption technology and intelligent controller work together to achieve fast fault interruption, isolation, and power restoration.

Protection functions include:

• Overload protection
• Short-circuit protection
• Fast fault isolation
• Automatic reclosing support

These capabilities help protect wind turbine equipment, improve grid stability, and ensure continuous renewable energy transmission.
