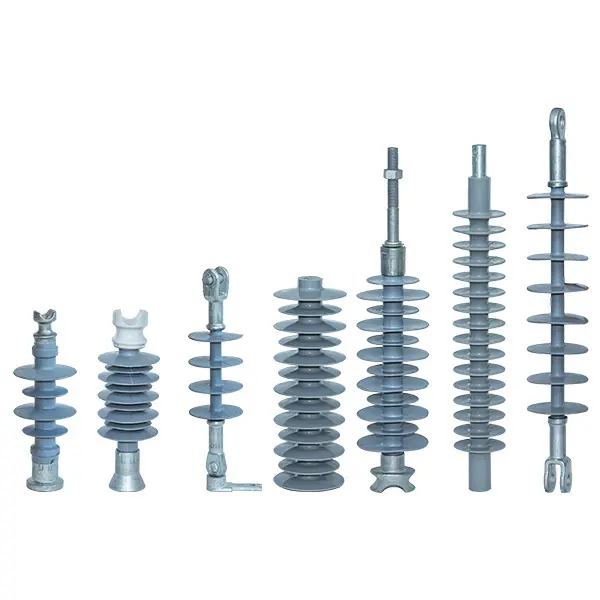

Pin Type Power Insulator

Pin Type Power Insulator is designed to provide reliable electrical insulation and mechanical support for overhead high-voltage transmission and distribution lines. Manufactured from high-quality porcelain or composite materials, it offers excellent dielectric performance, strong mechanical strength, and reliable resistance to weathering and pollution.

With a proven pin-mounted structure, the insulator is widely used in medium- and high-voltage distribution networks, outdoor substations, industrial power systems, and utility grids. Its durable design ensures stable operation under various environmental conditions, helping improve the safety and reliability of power transmission infrastructure.

Get a Quote

Key Features

Wide Voltage Range for High-Voltage Applications
Designed for various high-voltage overhead distribution and transmission systems, providing reliable insulation performance across different operating conditions.
High Mechanical Strength
Offers strong mechanical load capacity to support conductors and withstand long-term operational stress, wind loads, and environmental forces.
Excellent Weather Resistance & Hydrophobic Performance
Provides stable performance against moisture, UV exposure, pollution, and temperature variations, ensuring reliable outdoor operation.
Reliable Insulation Performance
Helps reduce leakage current and minimize power losses by maintaining effective electrical insulation between conductors and supporting structures.
Easy Installation & Maintenance
The pin-mounted structure allows convenient installation on transmission poles, distribution equipment, and outdoor switchgear systems.

Typical Applications

Overhead Power Transmission & Distribution Lines
Used for conductor support and insulation in medium- and high-voltage overhead networks.
Outdoor Substations & Switchyards
Suitable for electrical equipment support and insulation applications in outdoor power facilities.
Industrial Power Supply Networks
Provides reliable insulation solutions for factories, plants, and industrial distribution systems.
Utility Power Grids
Designed for power networks requiring durable insulation, mechanical reliability, and long-term outdoor performance.
